Description
Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control,circulating pumps, noon signs, etc.

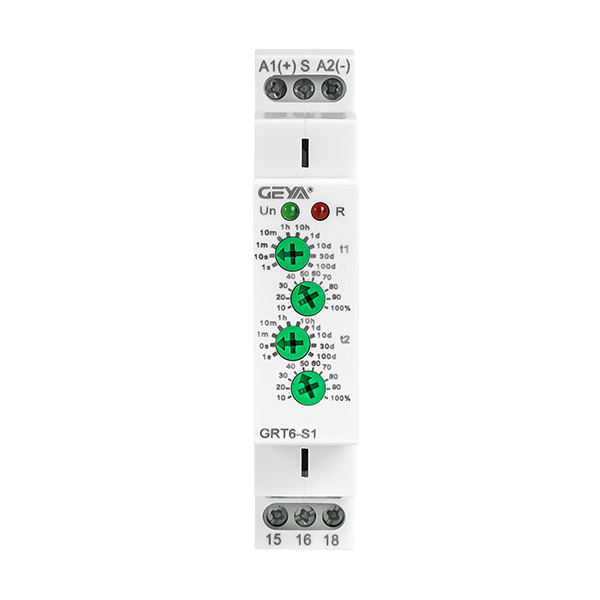

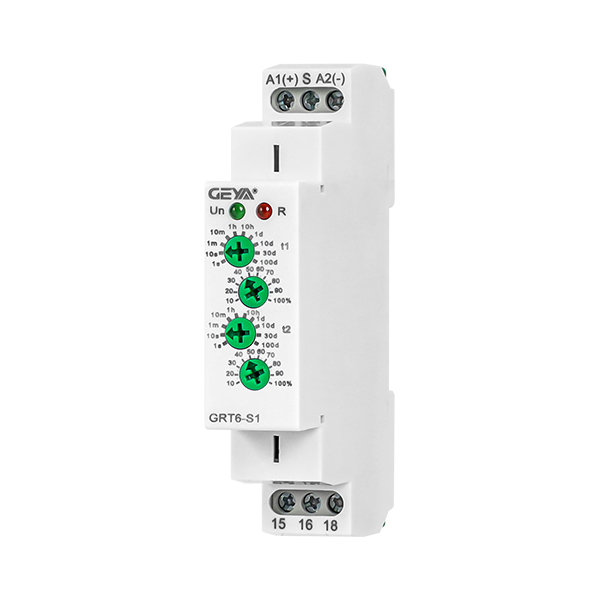

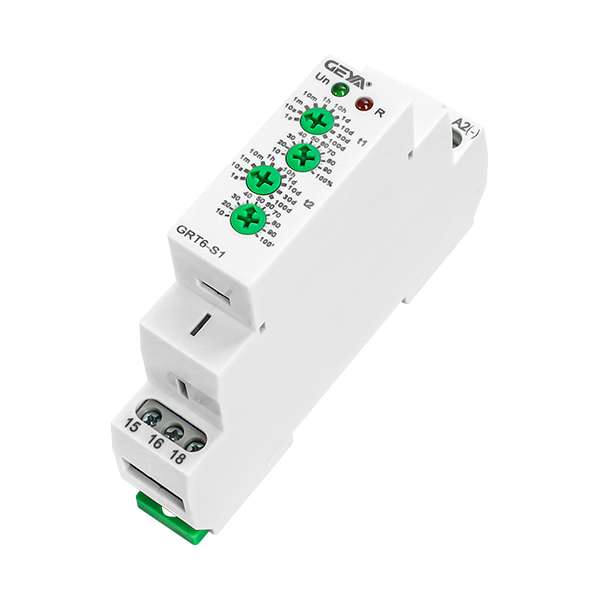

GRT6-S Asymmetric Cycler Time Relay

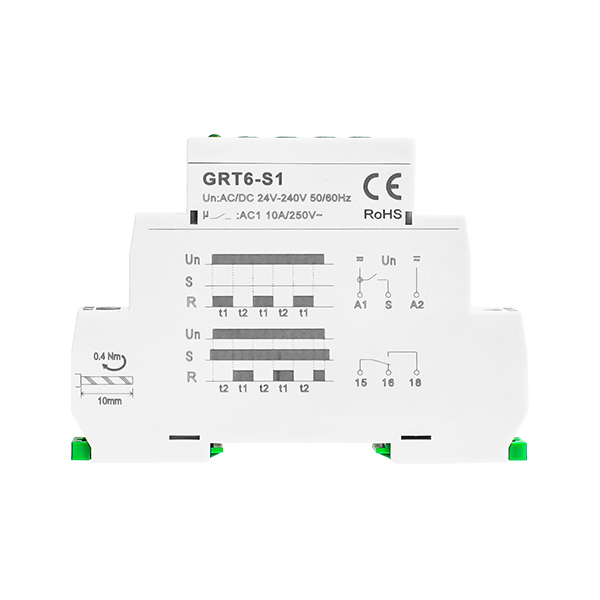

Features
-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s – 100 days devided into 10 time ranges:(0.1 s – 1 s / 1 s – 10 s / 0.1 min – 1 min / 1 min – 10 min / 0.1 hrs – 1 h/ 1 hrs – 10 hrs / 0.1 day – 1 day /1 day – 10 days /3 days – 30 days /10 days – 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
| Technical parameters | GRT6-S1 | GRT6-S2 | ||||
| Function | Asymmetric cycler time relay | |||||
| Supply terminals | A1-A2 | |||||
| Voltage range | A230S240 | AC/DC24-240V(50-60Hz | ||||
| Burden | AC 0.09-3VA/DC 0.05-1.7W | |||||
| Voltage range | AC 230V(50-60Hz) | |||||
| Power input | AC max.6VA/1.3W | AC max.6VA/1.9W | ||||
| Supply voltage tolerance | ‘-15%;+10% | |||||
| Supply indication | greenLED | |||||
| Time ranges | 0.1s-10days | |||||
| Time setting | potentionmeter | |||||
| Time deviation | 10%-mechanical setting | |||||
| Repeat accuracy | 0.2%-setvalue stability | |||||
| Temperature coecient | 0.05%/℃,at=20℃(0.05%F,at=68F) | |||||
| Output | 1XSPDT | 2×SPDT | ||||
| Currentrating | 10A/AC1 | |||||
| Switching voltage | 250VAC/24VDC | |||||
| Min.breaking capacity DC | 500mW | |||||
| Output indication | red LED | |||||
| Mechanical life | 1×107 | |||||
| Electrical life(AC1) | 1×10⁵ | |||||
| Reset time | max.200ms | |||||
| Operating temperature | -20℃ to+55℃ (-4F to 131F) | |||||
| Storage temperature | -35℃ to+75℃(-22F to 158F) | |||||
| Mounting/DIN rail | Din rail EN/IEC 60715 | |||||
| Protection degree | IP40 for front panel/IP20 terminals | |||||
| Operating position | any | |||||
| Overvoltage cathegory | III. | |||||
| Pollution degree | 2 | |||||
| Max.cable size(mm2) | solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12) | |||||
| Tightening torque | 0.4Nm | |||||
| Dimensions | 90×18×64mm | |||||
| Weight | 1×SPDT:S240-63g,A230-62g | |||||
| 2×SPDT:S240-83g,A230-82g | ||||||
| Standards | EN61812-1,IEC60947-5-1 | |||||
