Applications
-Can be widely used in power grid terminal line,such as meter box, new energy circuit management, PV solar control box, smart electricity, smart home, new energy vehicle charging pile, and so on.
Feature

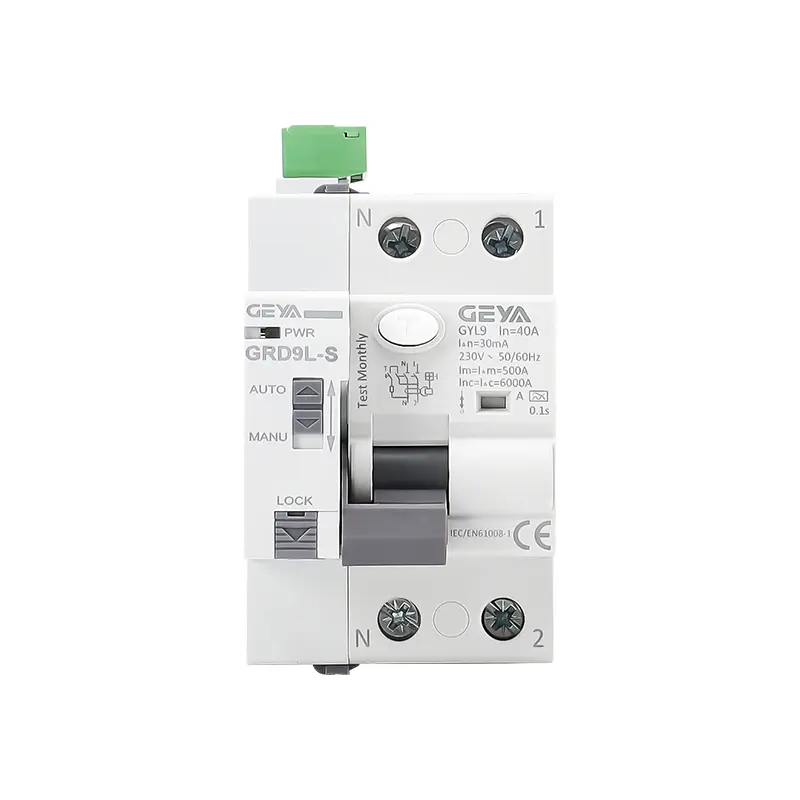

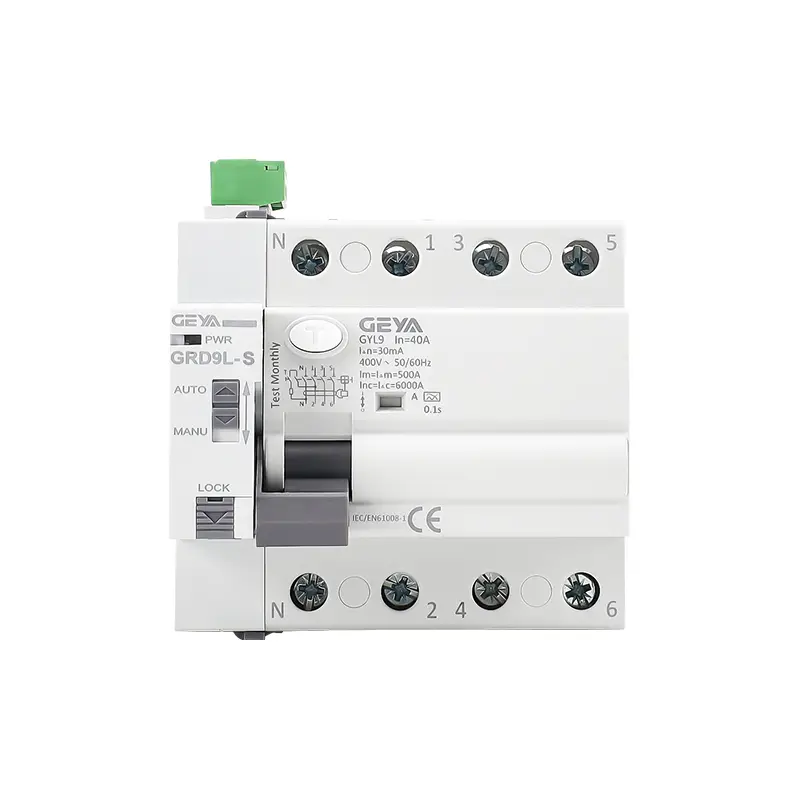

-Can be matched with MCB/RCCB,remote switching and splitting of MCB/RCCB.
-Remote monitoring and control of MCB/RCCB through RS485 interface.
-With manual/automatic selector switch.
-With mechanical/electronic double locking function.
-The shaft transmission mode is more stable and reliable.
-Can match other accessories.
-Work status is indicated by LED.
-1-MODULE.
| GRD9L-S | |
| Control mode | RS485 |

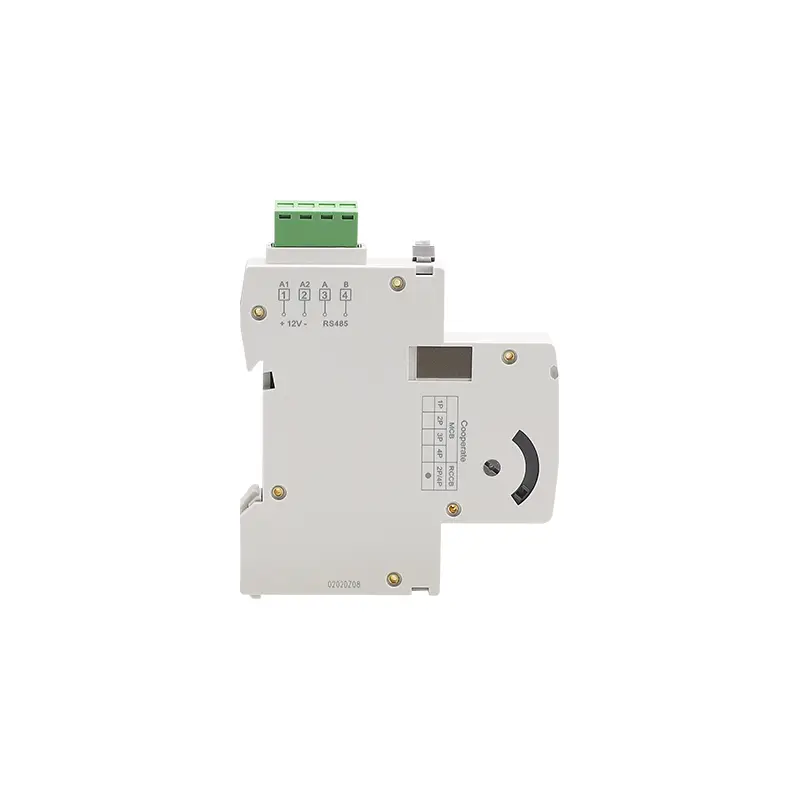

| Supply terminals | A1-A2 |
| Voltage range | DC12V |
| Power input | DC max.1W(standby) max.20W(action) |
| Voltage range | AC 220V(50-60Hz) |
| Supply voltage tolerance | -10%;+10% |
| Power input | AC max.1VA(standby)max.20VA(action) |
| Supply voltage tolerance | -10%;+10% |
| Supply indication | red LED |
| Action time | ≤1s |
| Communication protocol | MODBUS-RTU |
| Mechanical life | 10000 |
| Electrical life(AC1) | 4000 |
| Operating temperature | -20℃ to +55℃(-4℉ to 131℉ ) |
| Storage temperature | -35℃ to +75℃(-22℉ to 158℉ ) |
| Mounting/DIN rail | Din rail EN/IEC60715 |
| Protection degree | IP20 |
| Operating position | any |
| Overvoltage cathegory | III |
| Pollution degree | 2 |
| Max.cable size(mm2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) |

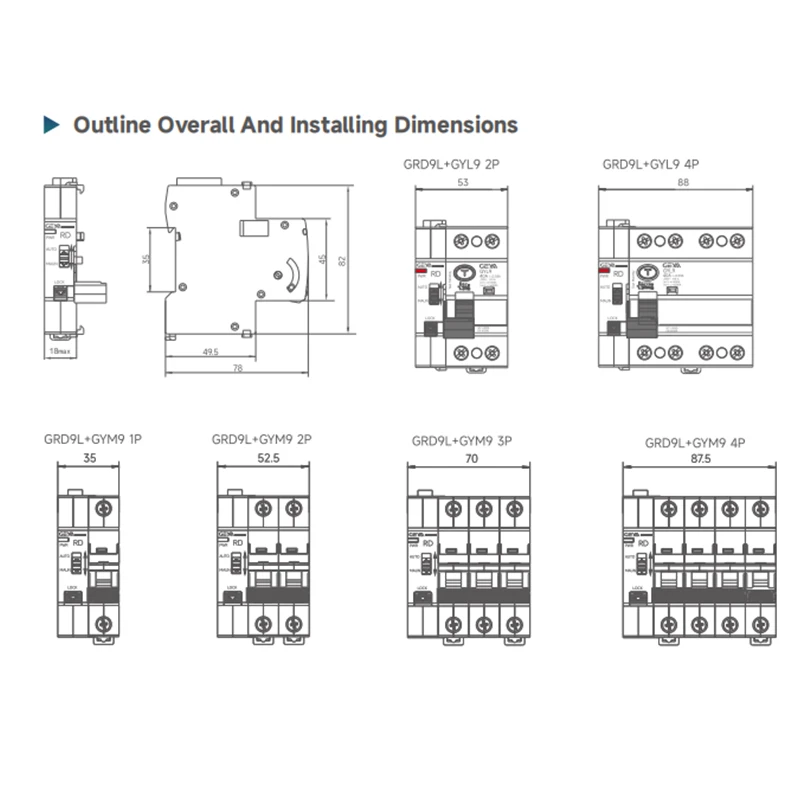

| Dimensions | 82×18×78mm |
| Weight | 80g |
| Combination with accessories | |
| Auxiliary contact | Yes |
| Alarm contact | Yes |
| Shunt release | Yes |
| Under voltage release | Yes |
